Accessories

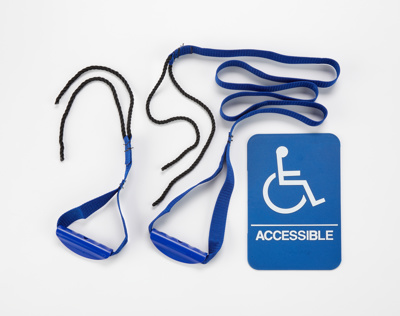

Kit for ADA assistance.
Product #: 521237
ADA Conversion Kit | $45.00

Kit for ADA assistance.

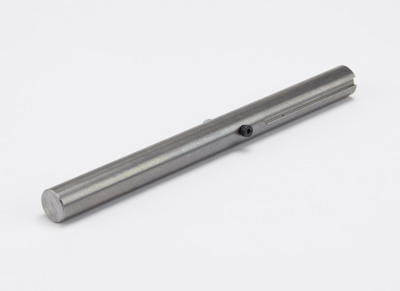

For use with chain hoists and motor operators on model 944 doors. For 955 doors, order #600531.
Product #: 504481
Shaft Extension, 944 | $30.26

For use with chain hoists and motor operators on model 944 doors. For 955 doors, order #600531.

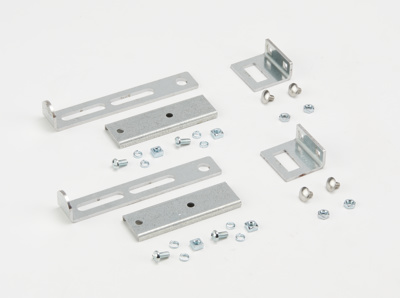

Interior slide latch for model 944/955/988 doors. Includes latch and all required mounting hardware.
Product #: 521226
Interior Lock 944/955/988 | $37.82

Interior slide latch for model 944/955/988 doors. Includes latch and all required mounting hardware.

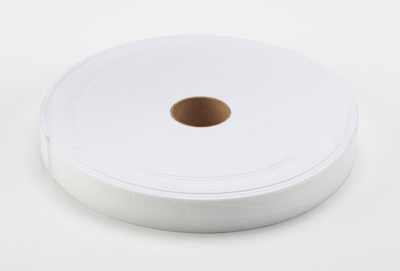

This adhesive backed felt tape is used on the back side of all Trac-Rite Doors. The back side is is adhesive coated for easy installation. The felt tape backer helps to reduce noise and protect the paint during door operation. 75' roll.
Product #: 521264
Felt Tape (Must order in 75' rolls) | $45.75

This adhesive backed felt tape is used on the back side of all Trac-Rite Doors. The back side is is adhesive coated for easy installation. The felt tape backer helps to reduce noise and protect the paint during door operation. 75' roll.

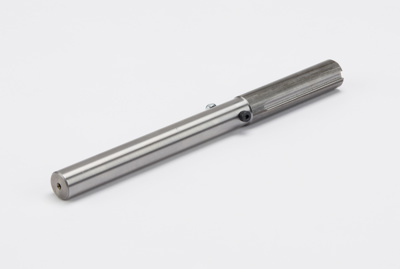

For use with chain hoists and motor operators on model 955 doors.
Product #: 600531
Shaft Extension, 955 | $42.36

For use with chain hoists and motor operators on model 955 doors.

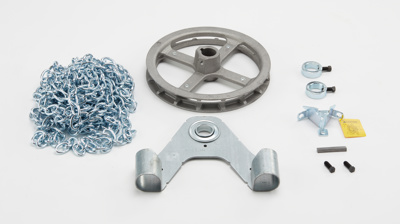

This kit includes hardware to install a chain operated hoist. A shaft extension is also required, sold separately. Order extension part #504481 for 944 doors, or part #600531 for 955 doors.
Product #: 600550
Direct Drive Hoist | $90.78

This kit includes hardware to install a chain operated hoist. A shaft extension is also required, sold separately. Order extension part #504481 for 944 doors, or part #600531 for 955 doors.

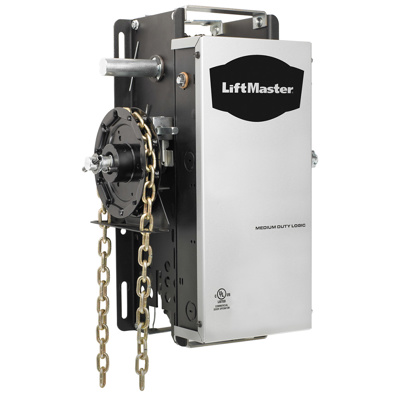

Liftmaster MHS5011. Left side mount. For use with 944. 955, and 988 doors. Right/left is determined when standing in unit looking out -order the motor based on desired mounting location. Includes three button wired station, laser eye sensor, and built in receiver. Photo shows right mounted version.
Product #: 604003
MHS 5011 (Left Hand Side) Operator Only | $968.29

Liftmaster MHS5011. Left side mount. For use with 944. 955, and 988 doors. Right/left is determined when standing in unit looking out -order the motor based on desired mounting location. Includes three button wired station, laser eye sensor, and built in receiver. Photo shows right mounted version.

Liftmaster MHS5011. Right side mount. For use 955 and 988 doors. Right/left is determined when standing in unit looking out - order the motor based on desired mounting location. Includes three button wired station, laser eye sensor, and built in receiver. Photo shows right mounted version.
Product #: 604004
MHS 5011 (Right Hand Side) Operator Only | $968.29

Liftmaster MHS5011. Right side mount. For use 955 and 988 doors. Right/left is determined when standing in unit looking out - order the motor based on desired mounting location. Includes three button wired station, laser eye sensor, and built in receiver. Photo shows right mounted version.

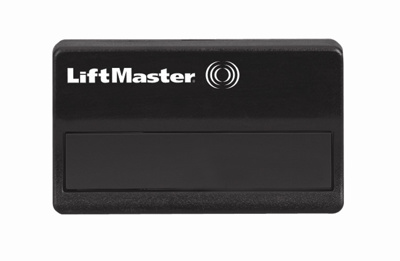

Liftmaster 371LM wireless control for use with Liftmaster 5011 operator.
Product #: 604006
Model 371LM Radio Control | $46.90

Liftmaster 371LM wireless control for use with Liftmaster 5011 operator.

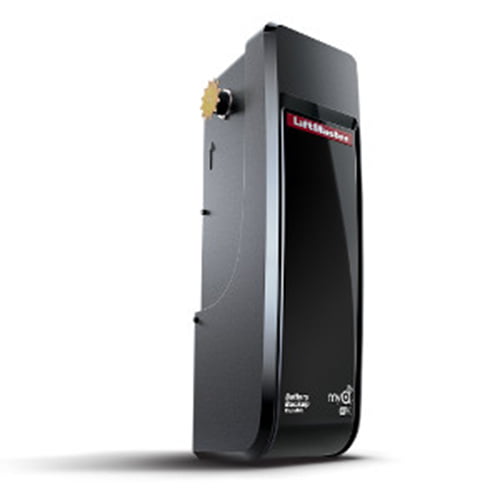

The liftmaster LJ8950W is recommended for model 944 or 955 doors. Works with right or left side mounting. Includes wired wall switch, sprockets and chain needed for use with 944 doors. Order shaft extension kit part 604035 for use with 955 doors. Not recommended for doors under 9' wide x 7' tall.<br> Includes MyQ technology and built in WI-FI for operation via mobile app.<br> 944 models will need shaft extension part #504490 <br> 955 models will need shaft extension part #604035
Product #: 604080
Liftmaster LJ8950W Door Operator | $680.82

The liftmaster LJ8950W is recommended for model 944 or 955 doors. Works with right or left side mounting. Includes wired wall switch, sprockets and chain needed for use with 944 doors. Order shaft extension kit part 604035 for use with 955 doors. Not recommended for doors under 9' wide x 7' tall.
Includes MyQ technology and built in WI-FI for operation via mobile app.
944 models will need shaft extension part #504490
955 models will need shaft extension part #604035

<span class='parts__description'>5ft. $52 | 6ft. $58 <br> 7ft. $68 | 8ft. $72 <br> 9ft. $80 | 10ft. $96</span><br> The sill plate is the perfect final touch for structures with plywood floors, or anywhere that an extra layer of defense against water seepage is desired. Formed from heavy 20 gauge G90 galvanized steel, the sill plate provides years of protection against wear, standing up to foot and vehicle traffic. Formed from heavy 20 gauge G90 galvanized steel, the sill plate provides years of protection against wear, standing up to foot and vehicle traffic. Available in sizes from 5' to 10' in 1 inch increments. Trim to size with a hacksaw. For door openings over 10' wide, use multiple sections and caulk the seam.
Product #: 900001
Threshold | $

5ft. $52 | 6ft. $58
7ft. $68 | 8ft. $72
9ft. $80 | 10ft. $96

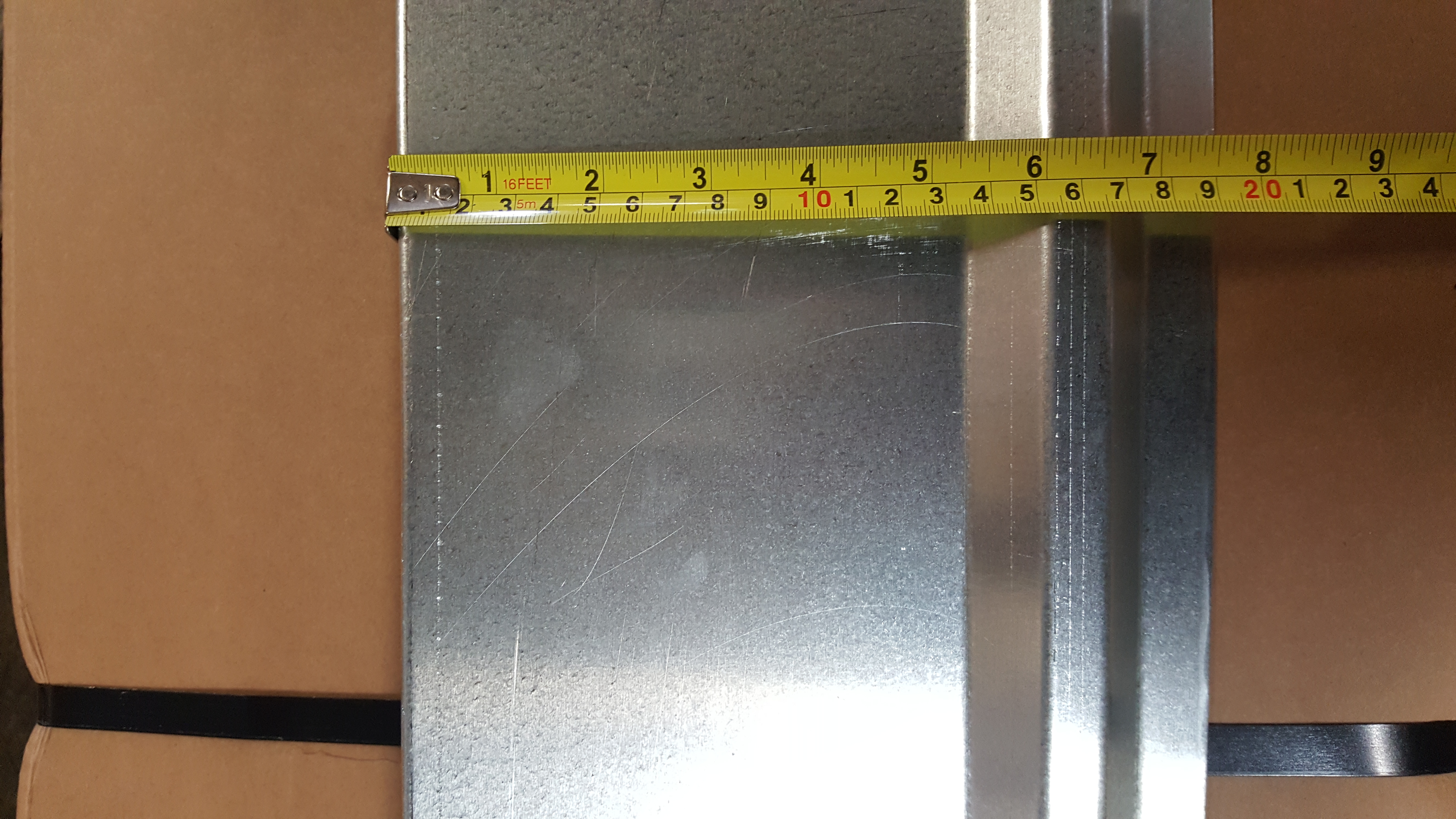

The sill plate is the perfect final touch for structures with plywood floors, or anywhere that an extra layer of defense against water seepage is desired. Formed from heavy 20 gauge G90 galvanized steel, the sill plate provides years of protection against wear, standing up to foot and vehicle traffic. Formed from heavy 20 gauge G90 galvanized steel, the sill plate provides years of protection against wear, standing up to foot and vehicle traffic. Available in sizes from 5' to 10' in 1 inch increments. Trim to size with a hacksaw. For door openings over 10' wide, use multiple sections and caulk the seam.

Your shopping cart:

is empty

Products

product 944

Model 944/944 WL

MODEL 944

The Trac-Rite® 944 door is ideal for residential, self-storage, and some light-duty commercial applications, including institutions and recreational facilities. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 944 is available in custom sizes from 3'W x 3'H to 11'W x 10'4"H in 1" increments. Designed for the do-it-yourselfer, 944 doors install in a fraction of the time it takes to install a sectional door.

MODEL 944WL (with Windlock System)

The Trac-Rite® 944WL is ideal for the same residential, self-storage, and light-duty commercial uses as the Model 944. In addition, Trac-Rite's windlock system provides maximum wind resistance for this model. As wind blows against the 944WL, the curtain's windlocks engage with the door guide for a strong interlocking grip. This grip keeps the curtain securely in the guide. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 944WL is available in custom sizes from 8'W x 3'H to 11'W x 10'4"H in 1" increments. Designed for the do-it-yourselfer, 944WL doors install in a fraction of the time it takes to install a sectional door.

Model 944 Doors are great for:

  • Self-Storage Facilities
  • Counter Shutters
  • Garages
  • Park Shelters
  • Roll-Up Interior Partition Dividers
  • School Equipment Sheds
  • Security Doors
  • Small Span Structures
  • Apartment/Condo Storage Locker Doors
  • Backyard Sheds
  • Boat Houses

Model 944WL Doors are great for:

  • Self-Storage Facilities
  • Garages
  • Boat Houses
  • Park Shelters
  • School Equipment Sheds
  • Security Doors
  • Small Span Structures
  • Utility Sheds

NOTE: Doors should not be used in applications that require fire rated or explosion proof doors. Heavy industrial and complex HVAC System (high negative or positive pressure) applications should also be avoided.


Sunset Orange

Polar Blue

Royal Blue

Continental Brown

Desert Tan

Garnet Red

Crimson Red

Patriot Red

Cedar Red

Matte Black

Shale

Iced White

Bright White

Ash Gray

UB Yellow

Burnished Slate

Light Stone

Dark Charcoal Gray

Lime Green

Evergreen

Evergreen

Fern Green

Wasabi Green

Light Stone

Silhouette Gray

Teal

Model 944: (scroll down to see 944WL specifications)

Design Type
• Live axle: door axle rotates in bracket bearing during operation.
Drums
• Stamped, continuously welded at the hub. 9-5/8" diameter spiral x 1-1/4" wide. 18-gauge, galvanized steel. Two drums with doors up to 5' wide, three drums with doors over 5' wide. Prevents panels from bowing.
EP3 Springs
• Helical torsion, oil tempered, and coated to halt corrosion. One spring for doors 5' wide and smaller, two springs for doors wider than 5'.
Tensioning System
• Springs come with a coated cast steel tension wheel and winding bar for ease of adjusting spring tension.
Axle
• 1-5/16" outside diameter, high-yield structural steel tubing.
Curtain
• Roll-formed sections, factory-seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2" felt tape located at each drum.
Bottom Assembly
• Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
• 14-gauge, cold-formed, zinc-coated steel. Grease-packed ball bearings are factory installed in the bracket.
Guides
• 18-gauge, zinc-coated, 1-1/2" deep. Featuring polypropylene guide runners with pre-bent tabs.
SpaceGuard Exterior Latch
• Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16" shank. Accommodates Trac-Rite's optional SpaceGuard cylinder lock for easy over-locking.
Mounting Fasteners
• Steel or wood fasteners included. For masonry openings,
mounting clips and anchoring system are sold separately.
Door Stop
• 12-gauge, zinc-coated stops mount to brackets for increased strength and ease of installation.
Exterior Handle
• Zinc-plated outside handle secured to bottom assembly with stainless steel bolts. Two handles for doors 8' and wider.
Pull Rope Handle
• Molded plastic rope handle with long-lasting rope.

NOTE: Product specifications are subject to change without notice.

Model 944WL:

Design Type
• Live axle: door axle rotates in bracket bearing during operation.
Drums
• Stamped, continuously welded at the hub. 9-5/8" diameter spiral x 1-1/4" wide. 18-gauge, galvanized steel. Two drums with doors up to 5' wide, three drums with doors over 5' wide. Prevents panels from bowing.
EP3 Springs
• Springs are helical torsion, oil tempered, and coated to halt corrosion. One spring for doors 5' wide and smaller, two springs for doors wider than 5'.
Tensioning System
• Springs come with a coated cast steel tension wheel for ease of adjusting tension.
Axle
• 1-5/16" outside diameter, high-yield structural steel tubing.
Curtain
• Roll-formed sections, factory-seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2" felt tape located at each drum.
Curtain Windlocks
• 10-gauge, zinc-coated steel, secured to door with two 3/16" rivets.
Bottom Assembly
• Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
• 14-gauge, cold-formed, zinc-coated steel. Grease-packed ball bearings are factory installed in the bracket.
Guides
• Features black nylon 6/6 biscuit secured to door with two stainless steel 3/16" rivets.
SpaceGuard Exterior Latch
• Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16" shank. Accommodates Trac-Rite's optional SpaceGuard cylinder lock for easy over-locking.
Mounting Fasteners
• Steel or wood fasteners included. For masonry openings,
mounting clips and anchoring system are sold separately.
Door Stop
• 12-gauge, zinc-coated stops mount to brackets for increased strength and ease of installation.
Exterior Handle
• Zinc-plated outside handle secured to bottom assembly with stainless steel bolts. Two handles for doors 8' and wider.
Pull Rope Handle
• Molded plastic rope handle with long-lasting rope.

NOTE: Product specifications are subject to change without notice.

Model 944 Door:

Width PSF Rating
5'0"56.0 PSF / 228 MPH
6'0"42.0 PSF / 208 MPH
7'0"30.0 PSF / 176 MPH
8'0"24.0 PSF / 158 MPH
8'8"23.0 PSF / 155 MPH
9'0"22.0 PSF / 152 MPH
10'0"18.0 PSF / 138 MPH
11'0"16.0 PSF / 130 MPH
12'0"12.0 PSF / 115 MPH

Model 944WL Door:

Width PSF Rating
8'0"33.0 PSF / 197 MPH
8'8"33.0 PSF / 197 MPH
9'0"37.0 PSF / 197 MPH
10'0"22.0 PSF / 184 MPH
11'0"22.0 PSF / 184 MPH
12'0"22.0 PSF / 154 MPH

Model 944:

After reviewing the complete installation instructions, installing a Trac-Rite 944 door is as easy as 1-2-3!

Installation Outline

  1. Assemble brackets and guides to door nest.
  2. Lift door in place and attach brackets. Tension the door, cut bands, and install door stops.
  3. Adjust and fasten guides. Install the handle and rope.

You're now ready to use your Trac-Rite 944 door!

Model 944WL:

After reviewing the complete installation instructions, you will find that Trac-Rite 944WL doors are easy to install!

Installation Outline

  1. Assemble brackets to door nest.
  2. Hoist door in place and attach brackets.
  3. Attach guides, tension the door, cut bands, and install door stops.
  4. Adjust and fasten guides. Install the handle and rope.

You're now ready to use your Trac-Rite 944WL door!

Step 1: Measure Framed Opening

Measure your framed opening. Doors are custom made to 1" increments in both width and height.

FOR EXAMPLE: If your framed opening is 7'6" wide and 8'0" high, you would order a 7'6"W x 8'0"H (width first, height second) door. A = Width B = Height




Step 2: Measure Mounting Surfaces

Measure the mounting surface areas. NOTE: all mounting surfaces must be flush.




Step 3: Measure Door Clearance

Measure the door clearance. NOTE: Insulated doors require an additional 1" of back room and head room.

Minimum Clearance:



Step 4: Select Door Model

Choose Model 944, 944WL, 977, 977WL, 988, or 988WL from the Door Model Selection Chart. If you are unsure of the best choice for your particular application, consider how your door will be used. The Model 944 is ideal for residential and light-duty needs. Model 988 offers the largest door dimensions. The “WL” models may be needed when building codes require a specific PSF rating.

Step 5: Order Your Door

Once you have completed the four preliminary steps for determining your needs, you are ready to order your door.

Call 1-800-253-8780 OR
Accessories PDF
product quonset

Modell 977/977 WL

MODEL 977

The 977 Model Trac-Rite® door is ideal for large self-storage projects such as boat and RV storage, as well as some light-duty commercial applications, including institutions and recreational facilities. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 977 is available in custom sizes from 8'W x 14'W to 16'H in 1" increments. All 977 Model doors come with a 3-year material warranty.

MODEL 977WL (with Windlock System)

The 977WL Model Trac-Rite® door is ideal for large self-storage projects such as boat and RV storage, as well as some light-duty commercial applications, including institutions and recreational facilities. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 977 is available in custom sizes from 8'W to 14'W x 16'H in 1" increments. All 977 Model doors come with a 3-year material warranty.

Model 977 Doors are great for:

  • Boat / RV Storage
  • Self Storage
  • Agricultural
  • Light Industrial

Model 977WL Doors are great for:

  • Boat / RV Storage
  • Self Storage
  • Agricultural
  • Light Industrial

NOTE: Doors should not be used in applications that require fire rated or explosion proof doors. Heavy industrial and complex HVAC System (high negative or positive pressure) applications should also be avoided.


Sunset Orange

Polar Blue

Royal Blue

Continental Brown

Desert Tan

Garnet Red

Crimson Red

Patriot Red

Cedar Red

Matte Black

Shale

Iced White

Bright White

Ash Gray

UB Yellow

Burnished Slate

Light Stone

Dark Charcoal Gray

Lime Green

Evergreen

Evergreen

Fern Green

Wasabi Green

Light Stone

Silhouette Gray

Teal

Model 977: (scroll down to see 977WL specifications)

Design Type
• Dead axle design with torque-tube assembly. Rotates on a fixed axle during operation.
Torque-Tube Assembly
• Axle is high-yield structural tubing with 1-5/16" outside diameter. Drums are 12" diameter spiral x 1-1/2" wide, 16-gauge, zinc-coated steel with grease-filled ball bearings mounted in the center of the drum to promote smooth operation. Springs are helical torsion, oil tempered, and coated to halt corrosion and increase life. Axle, drums, and springs are enclosed in a 26-gauge galvanized spiral tube to provide even curtain support.
Curtain
• Roll-formed sections, factory seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2" felt tape for smooth rolling and reduced marring.
Bottom Assembly
• Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
• Universal mounting brackets are interchangeable for mounting on the left or right side. 10-gauge, cold-formed, galvanized steel, embossed for added strength.
Saddle with Tensioner
• Easily adjustable one-piece saddle accepts 1-5/16" diameter axle. Double cams lock the axle in position and maintain tension on the springs.
Guides
• Zinc-coated, 2-3/4" deep. Featuring polypropylene guide runners to assure smooth operation and prevent steel-on-steel contact.
Chain Hoist
• 8:1 reduced-drive. Mounts directly to the axle on either the left or right side.
Exterior Latches
• Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16" shank. Accommodates Trac-Rite's optional SpaceGuard cylinder lock for easy over-locking.
Mounting Fasteners
• Steel or wood fasteners included.

Steel
Bracket: 1/4" x 1" self-drilling screws
Jamb: 1/4" x 1" self-drilling screws

Wood
Bracket: 3/8" x 2-1/2" lag bolt
Jamb: 1/4" x 1-1/2" self-drilling screws

Masonry
For masonry openings, mounting clips are sold separately. Masonry anchors are furnished by the Buyer.
Door Stop
• 12-gauge, zinc-coated, L-shaped door stops. Mounts to guides.
Pull Rope Handle
• Molded plastic rope handle with long-lasting rope.

NOTE: Product specifications are subject to change without notice.

Model 977WL:

Design Type
• Dead axle design with torque-tube assembly. Rotates on a fixed axle during operation.
Torque-Tube Assembly
• Axle is high-yield structural tubing with 1-5/16" outside diameter. Drums are 12" diameter spiral x 1-1/2" wide, 16-gauge, zinc-coated steel with grease-filled ball bearings mounted in the center of the drum to promote smooth operation. Springs are helical torsion, oil tempered, and coated to halt corrosion and increase life. Axle, drums, and springs are enclosed in a 26-gauge galvanized spiral tube to provide even curtain support.
Curtain
• Roll-formed sections, factory seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2" felt tape for smooth rolling and reduced marring.
Bottom Assembly
• Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
• Universal mounting brackets are interchangeable for mounting on the left or right side. 10-gauge, cold-formed, galvanized steel, embossed for added strength.
Saddle with Tensioner
• Easily adjustable one-piece saddle accepts 1-5/16" diameter axle. Double cams lock the axle in position and maintain tension on the springs.
Guides
• Zinc-coated, 2-3/4" deep. Featuring polypropylene guide runners to assure smooth operation and prevent steel-on-steel contact.
977WL Curtain Windlocks
• Black Nylon 6/6 secured to door with two 3/16" stainless steel rivets.
Chain Hoist
• 8:1 reduced-drive. Mounts directly to the axle on either the left or right side.
Exterior Latches
• Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16" shank. Accommodates Trac-Rite's optional SpaceGuard cylinder lock for easy over-locking.
Mounting Fasteners
• Steel or wood fasteners included. For masonry openings, mounting clips and anchoring system are sold separately.
Door Stop
• 12-gauge, zinc-coated, L-shaped door stops. Mounts to guides.
Pull Rope Handle
• Molded plastic rope handle with long-lasting rope.

NOTE: Product specifications are subject to change without notice.

Model 977 Door:

Width PSF Rating
8'0"24.0 PSF / 160 MPH
9'0"22.0 PSF / 153 MPH
10'0"18.0 PSF / 139 MPH
11'0"16.0 PSF / 131 MPH
12'0"12.0 PSF / 115 MPH

Model 977WL Door:

Width PSF Rating
8'0"37.0 PSF / 198 MPH
9'0"37.0 PSF / 198 MPH
10'0"22.0 PSF / 154 MPH
11'0"22.0 PSF / 154 MPH
12'0"22.0 PSF / 154 MPH
13'0"19.0 PSF / 144 MPH
14'0"19.0 PSF / 144 MPH

Model 977:

After reviewing the complete installation instructions (NOT AVAILABLE AT THIS TIME. NEW INSTURCTIONS COMING SOON), you will find that Trac-Rite 977 doors are easy to install!

Installation Outline

  1. Attach door brackets to header.
  2. Attach chain hoist and tensioning device.
  3. Hoist door in place and attach door to brackets.
  4. Attach guides, tension the door, cut bands, and install door stops.

You're now ready to use your Trac-Rite 977 door!

Model 977WL:

After reviewing the complete installation instructions , you will find that Trac-Rite 977WL doors are easy to install!

Installation Outline

  1. Attach door brackets to header.
  2. Attach chain hoist and tensioning device.
  3. Hoist door in place and attach door to brackets.
  4. Attach guides, tension the door, cut bands, and install door stops.

You're now ready to use your Trac-Rite 977WL door!

Step 1: Measure Framed Opening

Measure your framed opening. Doors are custom made to 1" increments in both width and height.

FOR EXAMPLE: If your framed opening is 7'6" wide and 8'0" high, you would order a 7'6"W x 8'0"H (width first, height second) door. A = Width B = Height




Step 2: Measure Mounting Surfaces

Measure the mounting surface areas. NOTE: all mounting surfaces must be flush.




Step 3: Measure Door Clearance

Measure the door clearance. NOTE: Insulated doors require an additional 1" of back room and head room.




Step 4: Select Door Model

Choose Model 944, 944WL, 977, 977WL, 988, or 988WL from the Door Model Selection Chart. If you are unsure of the best choice for your particular application, consider how your door will be used. The Model 944 is ideal for residential and light-duty needs. Model 988 offers the largest door dimensions. The “WL” models may be needed when building codes require a specific PSF rating.

Step 5: Order Your Door

Once you have completed the four preliminary steps for determining your needs, you are ready to order your door.

Call 1-800-253-8780 OR
product building

Model 988/988 WL

MODEL 988

The Trac-Rite® 988 door is designed for commercial uses in everything from shipping docks and warehouses to car washes and auto body shops. Available in custom sizes from 10'W x 8'H to 16'W x 16'H in 1" increments, the 988 features a 26-gauge, rigid-rib steel curtain that is durable, attractive, and requires little maintenance. The 988's dead-axle design with torque tube assembly allows the door to operate with ease. Trac-Rite's 988 door is the ideal choice for interior large door openings.

MODEL 988WL (with Windlock System)

The 988WL earns high marks for strength. It's ideal for a wide range of commercial uses. In addition, Trac-Rite's windlock system provides maximum wind resistance for this model. As wind blows against the 988WL, the curtain's windlocks engage with the door guide for a strong interlocking grip. This grip keeps the curtain securely in the guide.

Available in custom sizes from 11'W x 8'H to 16'W x 16'H in 1" increments, the 988WL features a 26-gauge, rigid-rib steel curtain that is durable, attractive, and requires little maintenance. The 988WL's dead-axle design with torque-tube assembly allows the door to operate with ease.

Model 988 Doors are great for:

  • Shipping Docks
  • Warehouses
  • Post Frame Buildings
  • Auto Body Shops
  • Machine Shops
  • Fabric Span Structures
  • Agricultural Buildings
  • High Eave Structures

Model 988WL Doors are great for:

  • Shipping Docks
  • Warehouses
  • Post Frame Buildings
  • Auto Body Shops
  • Machine Shops
  • Fabric Span Structures
  • Agricultural Buildings
  • High Eave Structures

NOTE: Doors should not be used in applications that require fire rated or explosion proof doors. Heavy industrial and complex HVAC System (high negative or positive pressure) applications should also be avoided.


Sunset Orange

Polar Blue

Royal Blue

Continental Brown

Desert Tan

Garnet Red

Crimson Red

Patriot Red

Cedar Red

Matte Black

Shale

Iced White

Bright White

Ash Gray

UB Yellow

Burnished Slate

Light Stone

Dark Charcoal Gray

Lime Green

Evergreen

Evergreen

Fern Green

Wasabi Green

Light Stone

Silhouette Gray

Teal

Model 988: (scroll down to see 988WL specifications)

Design Type
• Dead axle design with torque-tube assembly. Rotates on a fixed axle during operation.
Torque-Tube Assembly
• Axle is high-yield structural tubing with 1-5/16" outside diameter. Drums are 12" diameter spiral x 1-1/2" wide, 16-gauge, zinc-coated steel with grease-filled ball bearings mounted in the center of the drum to promote smooth operation. EP3 springs are helical torsion, oil tempered, and coated to halt corrosion and increase life. Axle, drums, and springs are enclosed in a 26-gauge galvanized spiral tube to provide even curtain support.
Curtain
• Roll-formed sections, factory seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2" felt tape for smooth rolling and reduced marring.
Bottom Assembly
• Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
• Universal mounting brackets are interchangeable for mounting on the left or right side. 10-gauge, cold-formed, galvanized steel, embossed for added strength.
Saddle with Tensioner
• Easily adjustable one-piece saddle accepts 1-5/16" diameter axle. Double cams lock the axle in position and maintain tension on the springs.
Guides
• 16-gauge, zinc-coated, 2-3/4" deep. Featuring polypropylene guide runners to assure smooth operation and prevent steel-on-steel contact.
Chain Hoist
• 8:1 reduced-drive. Mounts directly to the axle on either the left or right side.
Interior Latches
• 12-gauge, zinc-coated steel slide bolt engages a lock strike attached to the side guide. Two latches per door fasten to the bottom assembly and are suitable for padlocking.
Mounting Fasteners
• Steel or wood fasteners included. For masonry openings, mounting clips and anchoring system are sold separately.
Door Stop
• 12-gauge, zinc-coated, L-shaped door stops. Mounts to guides.

NOTE: Product specifications are subject to change without notice.

Model 988WL:

Design Type
• Dead axle design with torque-tube assembly. Rotates on a fixed axle during operation.
Torque-Tube Assembly
• Axle is high-yield structural tubing with 1-5/16" outside diameter. Drums are 12" diameter spiral x 1-1/2" wide, 16-gauge, zinc-coated steel with grease-filled ball bearings mounted in the center of the drum to promote smooth operation. EP3 springs are helical torsion, oil tempered, and factory lubricated to increase life cycle. Axle, drums, and springs are enclosed in a 26-gauge galvanized spiral tube to provide even curtain support.
Curtain
• Roll-formed sections, factory seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2" felt tape for smooth rolling and reduced marring.
Bottom Assembly
• Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
• Universal mounting brackets are interchangeable for mounting on the left or right side. 10-gauge, cold-formed, galvanized steel, embossed for added strength.
Saddle with Tensioner
• Easily adjustable one-piece saddle accepts 1-5/16" diameter axle. Double cams lock the axle in position and maintain tension on the springs.
Guides
• 16-gauge, zinc-coated, 2-3/4" deep. Featuring polypropylene guide runners to assure smooth operation and prevent steel-on-steel contact.
Curtain Windlocks
• 10-gauge, zinc-coated steel, secured to door with two 3/16" rivets.
Windlock Bar
• Galvanized, 12-gauge with holes for fastening to jamb every four inches. Placed inside the guide.
Chain Hoist
• 8:1 reduced-drive. Mounts directly to the axle on either the left or right side.
Interior Latches
• 12-gauge, zinc-coated steel slide bolt engages a lock strike attached to the side guide. Two latches per door fasten to the bottom assembly and are suitable for padlocking.
Mounting Fasteners
• Steel or wood fasteners included. For masonry openings, mounting clips and anchoring system are sold separately.
Door Stop
• 12-gauge, zinc-coated, L-shaped door stops. Mounts to guides.

NOTE: Product specifications are subject to change without notice.

Model 988WL Door:

Width PSF Rating
10"0"32.0/186
11'0"32.0 / 186
12'0"29.0 / 178
13'0"24.0 / 162
14'0"24.0 / 162
15'0"21.0 / 153
16'0"21.0 / 153

Model 988:

After reviewing the complete installation instructions, you will find that Trac-Rite 988 doors are easy to install!

Installation Outline

  1. Attach door brackets to header.
  2. Attach chain hoist and tensioning device.
  3. Hoist door in place and attach door to brackets.
  4. Attach guides, tension the door, cut bands, and install door stops.

You're now ready to use your Trac-Rite 988 door!

Model 988WL:

After reviewing the complete installation instructions, you will find that Trac-Rite 988WL doors are easy to install!

Installation Outline

  1. Attach door brackets to header.
  2. Attach chain hoist and tensioning device.
  3. Hoist door in place and attach door to brackets.
  4. Attach guides, tension the door, cut bands, and install door stops.

You're now ready to use your Trac-Rite 988WL door!

Step 1: Measure Framed Opening

Measure your framed opening. Doors are custom made to 1" increments in both width and height.

FOR EXAMPLE: If your framed opening is 7'6" wide and 8'0" high, you would order a 7'6"W x 8'0"H (width first, height second) door. A = Width B = Height




Step 2: Measure Mounting Surfaces

Measure the mounting surface areas. NOTE: all mounting surfaces must be flush.




Step 3: Measure Door Clearance

Measure the door clearance. NOTE: Insulated doors require an additional 1" of back room and head room.




Step 4: Select Door Model

Choose Model 944, 944WL, 977, 977WL, 988, or 988WL from the Door Model Selection Chart. If you are unsure of the best choice for your particular application, consider how your door will be used. The Model 944 is ideal for residential and light-duty needs. Model 988 offers the largest door dimensions. The “WL” models may be needed when building codes require a specific PSF rating.

Step 5: Order Your Door

Once you have completed the four preliminary steps for determining your needs, you are ready to order your door.

Call 1-800-253-8780 OR
Accessories PDF
