Model 944/944 WL

MODEL 944

The Trac-Rite® 944 door is ideal for residential, self-storage, and some light-duty commercial applications, including institutions and recreational facilities. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 944 is available in custom sizes from 3'W x 3'H to 11'W x 10'4"H in 1" increments. Designed for the do-it-yourselfer, 944 doors install in a fraction of the time it takes to install a sectional door.

MODEL 944WL (with Windlock System)

The Trac-Rite® 944WL is ideal for the same residential, self-storage, and light-duty commercial uses as the Model 944. In addition, Trac-Rite's windlock system provides maximum wind resistance for this model. As wind blows against the 944WL, the curtain's windlocks engage with the door guide for a strong interlocking grip. This grip keeps the curtain securely in the guide. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 944WL is available in custom sizes from 8'W x 3'H to 11'W x 10'4"H in 1" increments. Designed for the do-it-yourselfer, 944WL doors install in a fraction of the time it takes to install a sectional door.

Model 944 Doors are great for:

Self-Storage Facilities
Counter Shutters
Garages
Park Shelters
Roll-Up Interior Partition Dividers
School Equipment Sheds
Security Doors
Small Span Structures
Apartment/Condo Storage Locker Doors
Backyard Sheds
Boat Houses

Model 944WL Doors are great for:

Self-Storage Facilities
Garages
Boat Houses
Park Shelters
School Equipment Sheds
Security Doors
Small Span Structures
Utility Sheds

NOTE: Doors should not be used in applications that require fire rated or explosion proof doors. Heavy industrial and complex HVAC System (high negative or positive pressure) applications should also be avoided.

Sunset Orange

Polar Blue

Royal Blue

Continental Brown

Desert Tan

Garnet Red

Crimson Red

Patriot Red

Cedar Red

Matte Black

Shale

Iced White

Bright White

Ash Gray

UB Yellow

Burnished Slate

Light Stone

Dark Charcoal Gray

Lime Green

Evergreen

Fern Green

Wasabi Green

Light Stone

Silhouette Gray

Teal

Model 944: (scroll down to see 944WL specifications)

Design Type: • Live axle: door axle rotates in bracket bearing during operation.
Drums: • Stamped, continuously welded at the hub. 9-5/8" diameter spiral x 1-1/4" wide. 18-gauge, galvanized steel. Two drums with doors up to 5' wide, three drums with doors over 5' wide. Prevents panels from bowing.
EP3 Springs: • Helical torsion, oil tempered, and coated to halt corrosion. One spring for doors 5' wide and smaller, two springs for doors wider than 5'.
Tensioning System: • Springs come with a coated cast steel tension wheel and winding bar for ease of adjusting spring tension.
Axle: • 1-5/16" outside diameter, high-yield structural steel tubing.
Curtain: • Roll-formed sections, factory-seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2" felt tape located at each drum.
Bottom Assembly: • Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets: • 14-gauge, cold-formed, zinc-coated steel. Grease-packed ball bearings are factory installed in the bracket.
Guides: • 18-gauge, zinc-coated, 1-1/2" deep. Featuring polypropylene guide runners with pre-bent tabs.
SpaceGuard Exterior Latch: • Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16" shank. Accommodates Trac-Rite's optional SpaceGuard cylinder lock for easy over-locking.
Mounting Fasteners: • Steel or wood fasteners included. For masonry openings,
mounting clips and anchoring system are sold separately.
Door Stop: • 12-gauge, zinc-coated stops mount to brackets for increased strength and ease of installation.

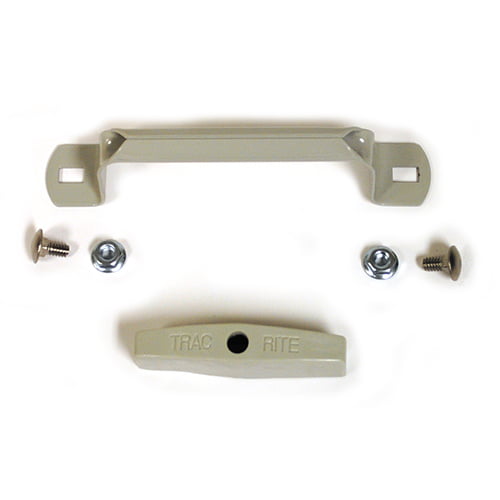

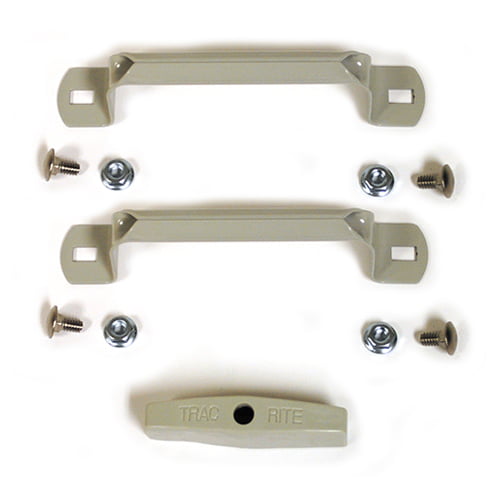

Exterior Handle: • Zinc-plated outside handle secured to bottom assembly with stainless steel bolts. Two handles for doors 8' and wider.

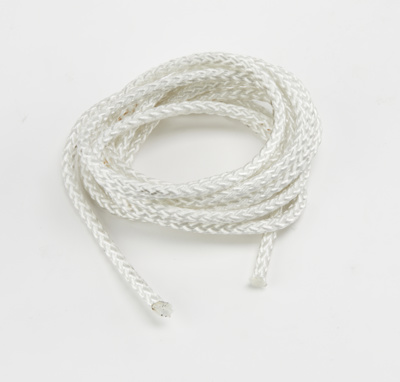

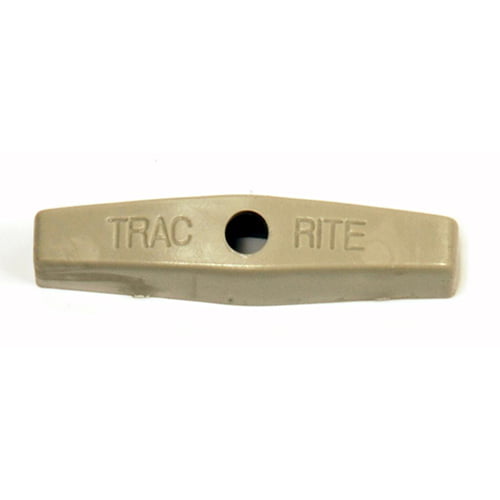

Pull Rope Handle: • Molded plastic rope handle with long-lasting rope.

NOTE: Product specifications are subject to change without notice.

Model 944WL:

Design Type: • Live axle: door axle rotates in bracket bearing during operation.
Drums: • Stamped, continuously welded at the hub. 9-5/8" diameter spiral x 1-1/4" wide. 18-gauge, galvanized steel. Two drums with doors up to 5' wide, three drums with doors over 5' wide. Prevents panels from bowing.
EP3 Springs: • Springs are helical torsion, oil tempered, and coated to halt corrosion. One spring for doors 5' wide and smaller, two springs for doors wider than 5'.
Tensioning System: • Springs come with a coated cast steel tension wheel for ease of adjusting tension.
Axle: • 1-5/16" outside diameter, high-yield structural steel tubing.
Curtain: • Roll-formed sections, factory-seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2" felt tape located at each drum.
Curtain Windlocks: • 10-gauge, zinc-coated steel, secured to door with two 3/16" rivets.
Bottom Assembly: • Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets: • 14-gauge, cold-formed, zinc-coated steel. Grease-packed ball bearings are factory installed in the bracket.
Guides: • Features black nylon 6/6 biscuit secured to door with two stainless steel 3/16" rivets.
SpaceGuard Exterior Latch: • Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16" shank. Accommodates Trac-Rite's optional SpaceGuard cylinder lock for easy over-locking.
Mounting Fasteners: • Steel or wood fasteners included. For masonry openings,
mounting clips and anchoring system are sold separately.
Door Stop: • 12-gauge, zinc-coated stops mount to brackets for increased strength and ease of installation.
Exterior Handle: • Zinc-plated outside handle secured to bottom assembly with stainless steel bolts. Two handles for doors 8' and wider.
Pull Rope Handle: • Molded plastic rope handle with long-lasting rope.

NOTE: Product specifications are subject to change without notice.

Model 944 Door:

Width	PSF Rating
5'0"	56.0 PSF / 228 MPH
6'0"	42.0 PSF / 208 MPH
7'0"	30.0 PSF / 176 MPH
8'0"	24.0 PSF / 158 MPH
8'8"	23.0 PSF / 155 MPH
9'0"	22.0 PSF / 152 MPH
10'0"	18.0 PSF / 138 MPH
11'0"	16.0 PSF / 130 MPH
12'0"	12.0 PSF / 115 MPH

Model 944WL Door:

Width	PSF Rating
8'0"	33.0 PSF / 197 MPH
8'8"	33.0 PSF / 197 MPH
9'0"	37.0 PSF / 197 MPH
10'0"	22.0 PSF / 184 MPH
11'0"	22.0 PSF / 184 MPH
12'0"	22.0 PSF / 154 MPH

Model 944:

After reviewing the complete installation instructions, installing a Trac-Rite 944 door is as easy as 1-2-3!

Installation Outline

Assemble brackets and guides to door nest.
Lift door in place and attach brackets. Tension the door, cut bands, and install door stops.
Adjust and fasten guides. Install the handle and rope.

You're now ready to use your Trac-Rite 944 door!

Model 944WL:

After reviewing the complete installation instructions, you will find that Trac-Rite 944WL doors are easy to install!

Installation Outline

Assemble brackets to door nest.
Hoist door in place and attach brackets.
Attach guides, tension the door, cut bands, and install door stops.
Adjust and fasten guides. Install the handle and rope.

You're now ready to use your Trac-Rite 944WL door!

Step 1: Measure Framed Opening

Measure your framed opening. Doors are custom made to 1" increments in both width and height.

FOR EXAMPLE: If your framed opening is 7'6" wide and 8'0" high, you would order a 7'6"W x 8'0"H (width first, height second) door. A = Width B = Height

Step 2: Measure Mounting Surfaces

Measure the mounting surface areas. NOTE: all mounting surfaces must be flush.

Step 3: Measure Door Clearance

Measure the door clearance. NOTE: Insulated doors require an additional 1" of back room and head room.

Minimum Clearance:

Step 4: Select Door Model

Choose Model 944, 944WL, 977, 977WL, 988, or 988WL from the Door Model Selection Chart. If you are unsure of the best choice for your particular application, consider how your door will be used. The Model 944 is ideal for residential and light-duty needs. Model 988 offers the largest door dimensions. The “WL” models may be needed when building codes require a specific PSF rating.

Step 5: Order Your Door

Once you have completed the four preliminary steps for determining your needs, you are ready to order your door.

Call 1-800-253-8780 OR

Accessories PDF

Modell 977/977 WL

MODEL 977

The 977 Model Trac-Rite® door is ideal for large self-storage projects such as boat and RV storage, as well as some light-duty commercial applications, including institutions and recreational facilities. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 977 is available in custom sizes from 8'W x 14'W to 16'H in 1" increments. All 977 Model doors come with a 3-year material warranty.

MODEL 977WL (with Windlock System)

The 977WL Model Trac-Rite® door is ideal for large self-storage projects such as boat and RV storage, as well as some light-duty commercial applications, including institutions and recreational facilities. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 977 is available in custom sizes from 8'W to 14'W x 16'H in 1" increments. All 977 Model doors come with a 3-year material warranty.

Model 977 Doors are great for:

Boat / RV Storage
Self Storage
Agricultural
Light Industrial

Model 977WL Doors are great for:

Boat / RV Storage
Self Storage
Agricultural
Light Industrial

NOTE: Doors should not be used in applications that require fire rated or explosion proof doors. Heavy industrial and complex HVAC System (high negative or positive pressure) applications should also be avoided.
